EVAL6EDL7141FOC3SH Evaluation Board

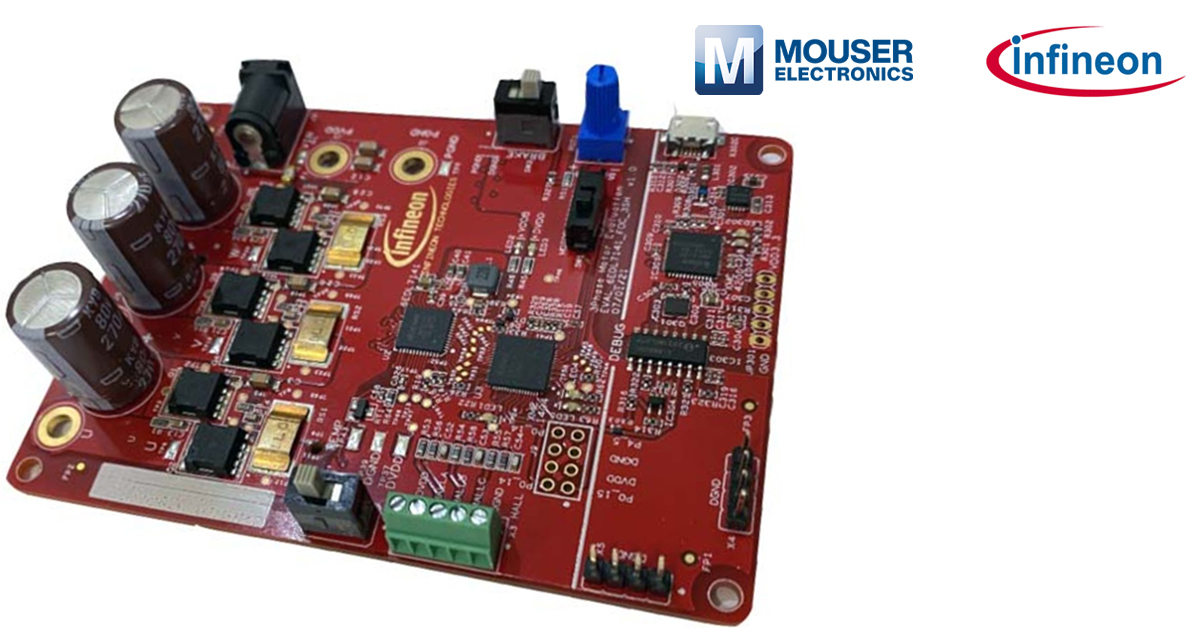

Infineon Technologies EVAL6EDL7141FOC3SH Evaluation Board is powered with a MOTIX™ 6EDL7141 smart three-phase motor control gate driver IC for BLDC control. This evaluation board is integrated with an XMC™ microcontroller, On-Board Debugger (OBD), and IST011N06NM5 OptiMOS™ 5 power MOSFET for battery-powered applications. This evaluation board is used to drive three-phase BLDC motors using Field-Oriented Control (FOC) with sensorless feedback on an XMC™ series microcontroller. The EVAL6EDL7141FOC3SH evaluation board is also integrated with a Hall-sensor connection to develop specific motor control codes using the Hall sensor for FOC-sensor applications. This evaluation board is a full system solution board ready to be plugged into the motor. Ideally, this board is used in consumer goods, drives, motor control and drives, and power tools.

Main Features

The main features of the EVAL6EDL7141FOC3SH evaluation board using MOTIX™ 6EDL7141 three-phase motor control gate driver IC for products using BLDC or PMSM motors are:

  • Single sTOLL power MOSFET at each bridge of the three-phase inverter
  • 36 V nominal input and 42 V maximum input voltage
  • 1000 W continuous power
  • 1.5 kW maximum peak power for 2 minutes
  • Fuse for OCP
  • Reverse polarity protection
  • 3.3 or 5.0 V onboard generation for compatible digital interface
  • Onboard debugger powered by SEGGER J-Link technology
  • Hardware supports both block commutation control and FOC using Hall sensors or back EMF

Development Tools

Infineon Development Tools offer a wide selection to enable the engineer's unique design, regardless of the target application. These range from LED lighting, power management, sensors, analog & digital ICs, communication, optoelectronic, and embedded development tools.

Battery Powered Applications

Infineon Technologies Battery Powered Applications offers advanced power semiconductors, leveraging top-notch technology and manufacturing expertise. This diverse Infineon portfolio supports reliable and efficient solutions for various motor drive applications, including power tools, forklifts, e-skateboards, e-scooters, pedelecs, and more.
