Siglent Launches 6.5 GHz Network Analyzer for R&D and Production Test

Siglent has released the SNA5000X-E, a two-port vector network analyzer covering 9 kHz to 6.5 GHz with a typical dynamic range of 125 dB.

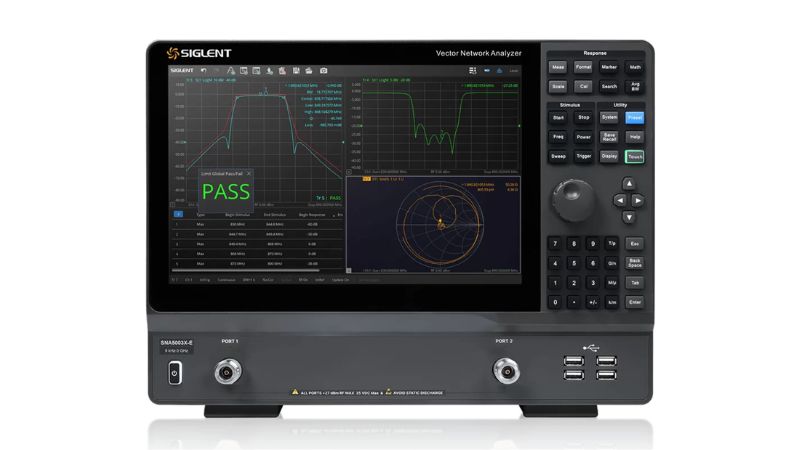

The SNA5000X-E.

Siglent designed the instrument as a cost-effective entry point to the company's SNA5000 platform, retaining the core performance architecture of the SNA5000A family while targeting R&D labs, educational institutions, and production test environments that need solid RF characterization without the price tag of a full-featured flagship analyzer.

125-dB Dynamic Range

The 125-dB dynamic range is significant at this price point, allowing engineers to measure high-loss components—such as deeply matched loads, attenuators, or long cable runs—with the reflected or transmitted signal well above the noise floor. For filter characterization, this dynamic range captures stopband rejection measurements with attenuation values of -100 dB and beyond with acceptable measurement uncertainty. Maintaining this sensitivity while preserving gain accuracy in passive component testing is a signature of mature RF measurement architecture.

The SNA5000X-E offers 1-Hz frequency resolution, an adjustable IF bandwidth from 1 Hz to 10 MHz, and an output power range of -40 dBm to 10 dBm with 0.05-dB level resolution. Trace noise is rated at 0.006 dB rms and 0.05 degrees rms, providing the measurement stability needed for characterizing passive components, filters, antennas, and transmission lines across the sub-7 GHz frequency range that covers most Wi-Fi, cellular, and IoT RF designs.

Calibration flexibility distinguishes this analyzer for field-ready and production use, supporting Response, Enhanced Response, Full One-Port, Full Two-Port, and Transmission-Reflection-Line (TRL) calibration methods. Response calibration provides baseline frequency response flatness, while Enhanced Response adds directivity correction. Full one-port and two-port methods account for port mismatch, directivity, leakage, and systematic errors in automotive, aerospace, and high-reliability RF tests.

Integrated Analysis Beyond S-Parameters

Where the SNA5000X-E distinguishes itself from bare-bones network analyzers is in its integrated analysis suite. Beyond standard S-parameter and differential-parameter measurements, the instrument includes time-domain analysis, enhanced time-domain analysis, and a spectrum analysis function.

These three capabilities enable engineers to evaluate frequency-domain characteristics, locate impedance discontinuities, and identify faults in devices under test without switching to a separate instrument. A receiver measurement mode allows direct input of external RF sources, expanding the analyzer's utility to applications where a separate signal source is already integrated into the test environment or where measuring transmitted power from a DUT is preferred over reflection measurements.

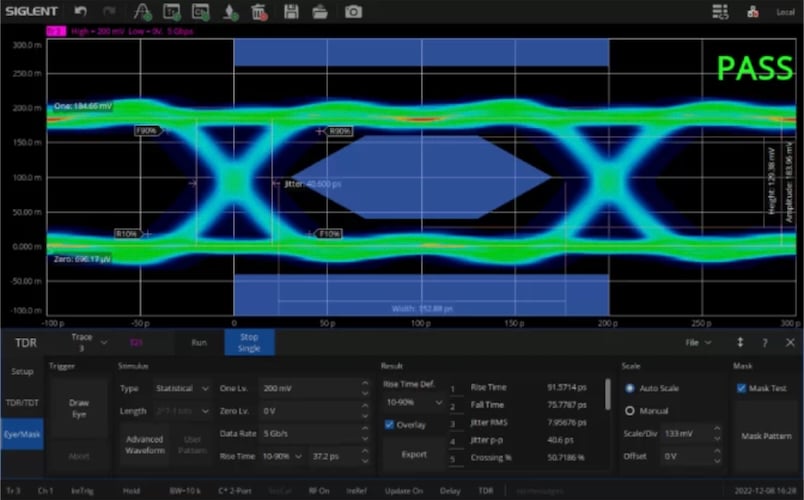

A built-in eye diagram function supports high-speed signal-integrity analysis, allowing engineers to assess the quality of digital signal paths directly from the network analyzer.

The VNA includes a built-in eye diagram function to support high-speed signal-integrity analysis, improving debugging efficiency.

For teams working on high-speed serial links, PCB trace characterization, or connector evaluation, this eliminates the need to switch between a VNA and a separate time-domain reflectometer or an oscilloscope-based eye-diagram setup during the debug cycle.

Production-Friendly Integration

The SNA5000X-E occupies a notably small footprint for a 6.5-GHz VNA, with a chassis depth of just 12.6 cm and a weight under 5.4 kg. For labs where bench space is shared among multiple instruments, or for production environments where the analyzer needs to fit into a rack-mounted test station, the reduced physical envelope is a big plus.

The front panel features a 12.1-inch touchscreen with multi-window support, letting engineers view multiple traces simultaneously and organize data across display regions without mode switching. This reduces the overhead of toggling between S-parameter plots, Smith charts, and time-domain waveforms during measurements. An HDMI output provides external display capability for presentations or remote monitoring.

On the connectivity side, the instrument supports LAN, USB devices, and USB hosts (with USB-GPIB adapter support). Remote control is available through SCPI commands over USB-TMC, VXI-11, Socket, and Telnet protocols, as well as through a built-in WebServer interface that enables browser-based instrument control from any networked computer. LabVIEW and IVI driver support rounds out the automation options.

A one-click filter characteristic analysis function automatically extracts insertion loss and bandwidth parameters, streamlining the kind of repetitive measurements that dominate production test workflows. Combined with custom formula operations and SCPI-based automation, the SNA5000X-E is equipped to serve as both a design-bench instrument and a production-line measurement engine.
