Choosing the Right Overcurrent Protection Device for Safe Consumer Designs

Consumer electronic products have become increasingly complex, compact, and power-dense. With these changes comes a heightened need for robust overcurrent protection strategies to ensure the safety, reliability, and longevity of electronic systems.

Whether the application involves portable battery-powered devices, USB-C power delivery, or motorized smart appliances, engineers face a critical design decision: which overcurrent protection device best balances performance, cost, space, and protection capabilities?

Figure 1. Today’s consumer products are getting more complex and need robust overcurrent protection.

This article compares the most common protection solutions available today: traditional fuses, resettable polymer PTC (PPTC) devices, and intelligent eFuse ICs. We examine their functional differences, performance trade-offs, and suitability for application in consumer electronics.

Overview of Overcurrent Protection Devices

Traditional Fuses

Traditional fuses are single-use protection components that permanently open the circuit when exposed to current beyond their rated threshold. They operate by melting a conductive element when the heat generated from overcurrent exceeds a critical value.

Advantages:

• Simple, low-cost, and reliable
• Available in a wide range of voltage and current ratings
• Well-characterized trip curves

Limitations:

• Non-resettable: must be manually replaced
• Not ideal for hard-to-service or portable devices
• Larger fuses may consume valuable PCB space

Surface-mount fuses are available for compact, automated assembly in small devices such as Bluetooth speakers, handheld remote controls, or personal grooming products.

PPTC Resettable Fuses

Polymer Positive Temperature Coefficient (PPTC) devices offer self-resetting protection. They are made from conductive polymer material that dramatically increases in resistance when heated by excessive current.

Advantages:

• Automatic reset after fault clears and cool-down occurs
• Compact surface-mount formats
• Cost-effective for low-voltage applications

Limitations:

• Slower response time than fuses or eFuses
• Performance varies with ambient temperature and lacks repeatability after resets
• Limited to low-voltage, low-current circuits.

PPTC devices are widely used in rechargeable battery packs, USB peripheral circuits, and in products with small DC motors, such as grooming tools and robotic vacuums.

eFuses (Electronic Fuses)

An eFuse is an integrated circuit that combines a power MOSFET with control and protection logic. An eFuse is designed for fast and precise overcurrent protection, and many models also include overvoltage protection, thermal shutdown, reverse current blocking, soft start, and fault reporting.

Advantages:

• Very fast response time
• Programmable current limits and fault thresholds
• Integrates multiple protection features in one device
• Remote reset and diagnostics

Limitations:

• More expensive than fuses or PPTCs
• Requires bias power and sometimes MCU integration
• Not suitable for high-voltage AC line applications.

They are ideal for USB-C power delivery ports, embedded control modules, SSDs, and IoT hubs where compact, intelligent protection is necessary.

Figure 2 shows the three types of overcurrent component technology and their relative sizes. Table 1 summarizes characteristics of each component type.

Figure 2. The three types of overcurrent components

Table 1. Characteristics of overcurrent components

Application-Specific Design Examples

1. Line-Powered Appliances

   Line-powered devices require traditional fuses that are rated for AC line voltage operation. Typical line-powered devices include small and large appliances such as blenders, air fryers, washing machines, and dryers. Figure 3 illustrates a block diagram of a washing machine that requires various protection, control, and sensing components. The insert in the diagram shows the circuit representing the AC input block. The fuse provides the overcurrent protection with a voltage rating for the single-phase AC line voltage, and the MOV protects against AC line voltage transients. A time delay fuse can prevent nuisance fuse openings caused by startup inrush current.

   Design Tip: Select a fuse with a room temperature current rating that is 133% of the maximum load current and that has been certified to UL 248-1.




   Figure 3. Washing machine block diagram with AC Input Protection block detail. (Click on image to enlarge)



   2. Portable Battery-Powered Devices

   Devices such as consumer electric drills, portable fans, and grooming tools often include rechargeable lithium-ion batteries, small motors, and limited board space. PPTC resettable fuses are ideal for these applications due to their low-voltage ratings, resettable operation, and low cost. A PPTC can be used between the battery input and the motor controller (see Figure 4) to limit fault current in the event of a motor stall or wiring short. The PPTC device provides resettable overcurrent protection, while the MCU controls switching and monitors motor current.

   Design Tip: Derate hold current based on ambient temperature and consider inrush current during charging or startup when selecting a PPTC device.





   Figure 4. Example portable motor control circuit powered by a 3.6 V Li-ion battery



   3. USB-C Powered Electronics

   Products powered by a USB-C port—such as smart speakers, portable projectors, and high-end grooming tools—require compliance with USB-Type C power delivery (PD) negotiation standards and must handle wide input voltages (5 V to 20 V).

   An eFuse is the best choice for these devices. An eFuse has multiple protection functions in a single integrated circuit with reverse current blocking to prevent a reverse current from damaging the circuitry. Models also can provide programmable current limits, short-circuit protection, overtemperature protection, undervoltage lockout, and seamless integration with power delivery (PD) controllers. Figure 5 details an eFuse protecting a USB-C port. The eFuse handles overcurrent and reverse current protection, while the PD controller negotiates power delivery with the host.

   Design Tip: Select an eFuse with adjustable slew rate control to manage inrush current due to capacitive loads.





   Figure 5. Example USB-C charging protection using an eFuse and PD controller



   4. Smart Home Hubs and Consumer IoT

   These devices often use microcontrollers, Wi-Fi/Bluetooth modules, and external flash memory. Cable shorts, component failures, or ESD events can cause faults in these systems. For low-voltage digital circuits (3.3V or 5V), traditional fuses may not respond fast enough, and PPTCs may not trip reliably at currents just above hold current ratings.

   An eFuse with a 0.5 A to 3 A current rating combines fast overcurrent protection for sensitive ICs, overvoltage protection, overtemperature protection, inrush control, and undervoltage lockout control all in one component. An eFuse provides complete protection from electrical hazards while reducing component count and saving PC board space. Figure 6 shows the diagram of a basic eFuse and its application in monitoring a voltage rail.

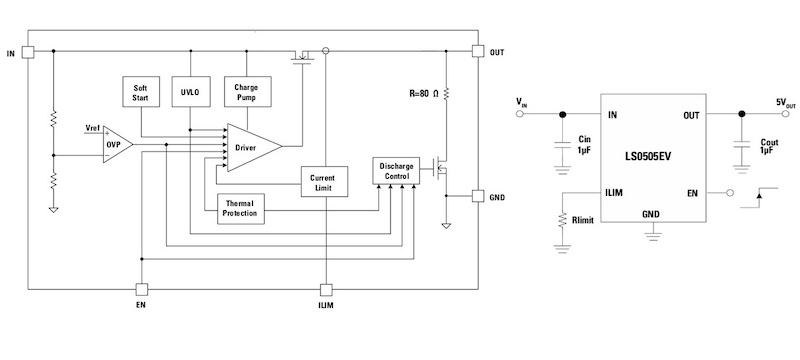

   Figure 6. eFuse functional diagram and typical application (LS0505). (Click on image to enlarge)



   5. Display Panels and Touchscreen Electronics

   Overcurrent protection in backlight circuits, capacitive touch controllers, or I/O ports must be responsive but not intrusive. PPTCs are commonly used in LED driver outputs, I²C/SPI data lines, and in circuits powering peripheral boards.

   PPTCs offer the benefit of automatic reset without requiring user intervention. For circuits with user-accessible ports such as USB and HDMI data ports, pairing PPTCs with TVS diodes ensures comprehensive overcurrent and transient protection.



   Discrete vs. Integrated Protection Strategies

   Designers have the option of ensuring complete protection for their circuits using discrete components or an integrated component approach. They may find that multiple options are beneficial in a product. The trade-offs are:



   Discrete Solutions

   Combining a traditional fuse or PPTC with MOSFETs, diodes, and logic offers modular flexibility but increases component count and complexity. Use this approach to provide individual protection for different subsystems within a product.



   Integrated eFuse Solutions

   An eFuse consolidates these functions, reducing layout complexity and improving MTBF (mean time between failure) by minimizing the number of protection circuit components.

   Figure 7 illustrates the two types of solutions. The PPTC-based discrete circuit offers configuration flexibility at the expense of PCB space, while the integrated eFuse circuit provides more fault protection features in a compact space.





   Figure 7. Discrete PPTC protection versus integrated eFuse protection comparison.



   An example where the different technologies are applicable in a single device is a smart appliance with multiple voltage rails. Designers may use:

• A traditional fuse on the primary AC or DC input
• PPTCs for low-power voltage rails
• An eFuse for the USB-C port or external I/O path.



  Thermal and Environmental Considerations

  Designers should consider the environment in which their consumer product must operate. A challenging environment may dictate the type of overcurrent protection technology required. The characteristics of all electronics vary with temperature. An eFuse’s protection settings are less susceptible than PPTCs or traditional fuses to wide temperature swings. Products used in bathrooms, kitchens, or outdoors must be robust to moisture and vibration, which will influence package choice (for example, conformal coating, sealed fuses).



  Regulatory and Compliance Requirements

  Designers need to be aware of the various standards, regulations, and communication protocol interoperability standards. Consumer electronics must meet:

• UL/IEC standards for safety and flammability
• EMC/EMI regulations for emissions and immunity
• USB-IF specifications for power negotiation.

Mandated fail-safe open conditions require UL-certified traditional fuses. PPTCs, which are frequently UL-recognized, are suitable for IEC 60950/62368-compliant designs. An eFuse can help meet safety requirements via fault detection with programmable protection logic.

Selecting the Right Device: Process Framework

The following steps define a framework for selecting the most appropriate overcurrent protection technology for a design:

1. Define voltage and current envelope

• What is the normal operating voltage?

• What is the max load current? Inrush?

2. Identify the fault conditions to protect against

• Short circuits

• Overload

• Reverse current

• Transients

3. Determine the required reset behavior

• Manual (fuse)

• Auto (PPTC)

• Software (eFuse)

4. Evaluate space, cost, and integration tradeoffs

• BOM cost

• PCB real estate

• Diagnostic capability

5. Review compliance and testing standards

• UL

• IEC

• USB-IF

• ISO

Application Dependent Decisions

No single overcurrent protection technology fits all consumer electronic designs. The decision depends on application-specific requirements for reset behavior, response time, voltage/current ratings, and system integration.

• Use traditional fuses for high-reliability AC and DC power input circuits.
• Use PPTCs in DC circuits where automatic reset is convenient and acceptable.
• Use eFuses in low-voltage DC circuits where programmable, space-saving, and multifunctional protection is essential.

By carefully aligning protection strategy with system needs, engineers can ensure safe, resilient, and cost-effective designs for a wide range of consumer electronics.
