MP1763C Waveform Generator

Anritsu - MP1760x Series

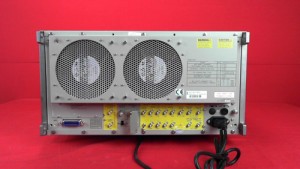

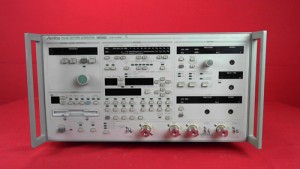

The MP1763C Pulse Pattern Generator has two data output channels (DATA and DATA) and three clock output channels (CLOCK1, CLOCK1, CLOCK2). The MP1763C is used with the MP1764A/C Error Detector to test high-speed digital communication systems and high-speed semiconductors. It operates over the 50 MHz to 12.5 GHz frequency range and generates four pulse patterns: alternate, programmable, zero substitution, and pseudorandom. Programmable DATA pattern can generate data up to 8 M bits and send six STM-64 (OC192) frames.There are also seven 2-1 (N=7, 9, 11, 15, 20, 23, 31) pseudorandom patterns. The pseudorandom pattern mark ratio can be selected from among 0/8, 1/8, 1/4, 1/2, 1/2, 3/4, 7/8, and 8/8. Both 50 GND and ECL outputs are supported. The offset and level can be varied. The clock (CLOCK1, CLOCK1) delay can also be adjusted by 500ps in 1ps steps.

  • Frequency: 50 MHz to 12.5 GHz
  • Channels: 3
  • Form Factor: Benchtop
